Pickup Truck Stake Pocket Antenna Mounts
PHOTOS AND DESCRIPTIONS OF ANTENNA MOUNTS


GENERAL SPECIFICATIONS
(Apply to all Mounts)

    • A small amount of shimming may be required at the top of the mount to provide a snug fit.
    • Coaxial cable and PL-259 fittings are not supplied.
    • Stainless steel anchor bolt and 3/8"-24 antenna mount hardware is supplied but not shown here.
    • The coax on our larger mounts exits through the open side of the mount.

Contact Rick - WA6JKH - at GeoTool : (714) 403-2026
Fax Phone Number: (949) 548-8885
info@geotool.com

MODEL HF1-X
STANDARD HF MOUNT BODY & ANCHOR BOLT
($74.95)

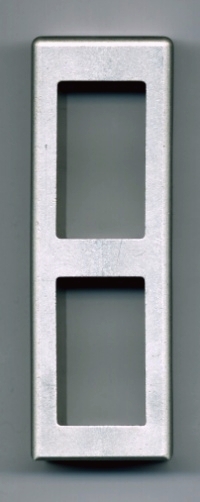

Standard mount, unmodified, shown with anchor bolt installed.  Sizes are also available most trucks.  HF Hardware (not shown) mounts at top of mount block.

DIMENSIONS

LENGTH = 5.75"
TOP = 0.60" THICK
SIDES  = 0.40" THICK

MODEL HF2-X
SHORT-HF MOUNT
($74.95)

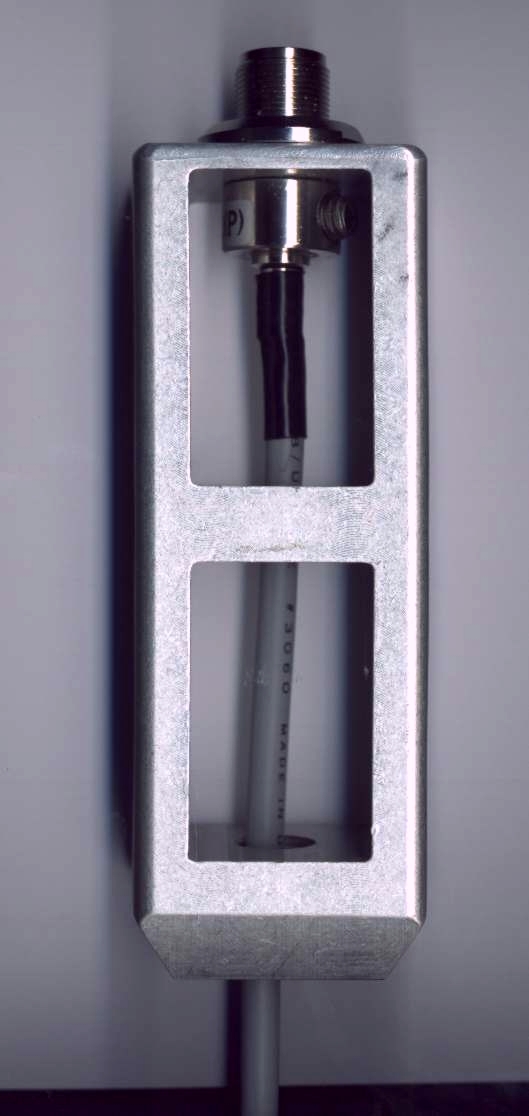

Designed for any truck with stake pockets as short as 5.75”. Our standard HF mount is modified by cutting 0.5 inch off the bottom of the basic block.  HF Hardware (not shown) mounts at top of mount block.

DIMENSIONS
LENGTH = 5.75"
TOP = 0.60" THICK SIDES = 0.40" THICK



MODEL VHF1-X
VHF/UHF MOUNT with
SO-239 ADAPTOR
($74.95)

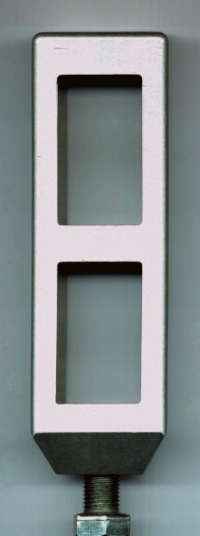

Standard mount modified by removing 0.4" from the top and 0.1" from the bottom.  The specially machined SO-239 connector shown here is used on all 'VHF1' model mounts.  The in-line SO-239 gives excellent SWR and low loss.
Coax not included




DIMENSIONS

TOTAL LENGTH = 5.75"
TOP OF MOUNT = 0.20" THICK.
SIDE WALLS = 0.40" THICK

MODEL VHF-2
VHF/UHF SO-239 MOUNT
($74.95)

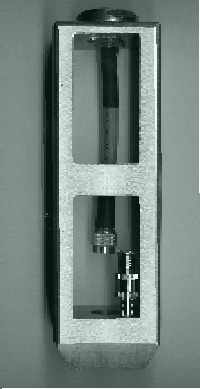

Standard mount block , modified by removing 0.4" from top and 0.1" from bottom.  The NMO connector gives good SWR and low loss up to 450 Mhz.
Coax not included.
Connectors available.
DIMENSIONS

TOTAL LENGTH =  5.75
TOP OF MOUNT =  0.20" THICK.
SIDE WALLS = 0.40" THICK



SO-239 Connector
Unmodified Version
(Not Sold Separately)

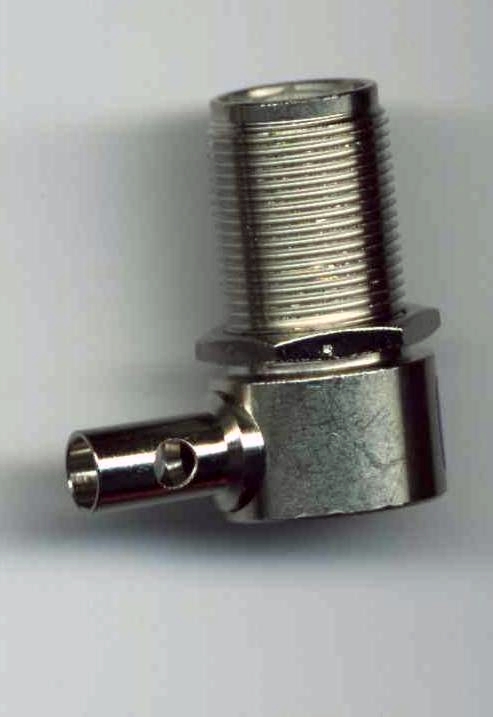

Standard SO-239 Connector comes from the factory with coaxial sleeve on side of mount. Use this configuration, and route the coax out the front or back of the mount through any of several openings found in most stake pockets.





SHIMMING DETAIL

Top of Mount with
Shimming material
Installed and Red
Electrical TapeCover
Note: New mounts never need this much shimming. Coupling nut now supplied is different than in photo

STUD MOUNT - Grounded


EXCELLENT FOR LOOP ANTENNA MASTS WHEN USED WITH 3/8"-24 COUPLING NUT! ALSO WORKS GREAT WITH MINI-TARHEEL ANTENNA.

MODEL SM-1 & SM-2
GROUNDED STUD MOUNT
$74.95 - GSM1-X
$74.95 - GSM2-X

Standard HF1 or HF2 mount, modified by installing a threaded 3/8"-24 adaptor at the top. Bolt is at ground potential. EXCELLENT for VHF/UHF LOOP ANTENNA MASTS (i.e.,KB6KQ Loop Antennas)

DIMENSIONS
LENGTH
  SM-1 = 6.25"
  SM-2
= 5.75"
TOP = 0.60" THICK

SIDES = 0.40" THICK

MODEL HF-TI
HF TUNER INSULATOR
(With HF1 or 2  - $15.95)
(Separately- $24.95)

High strength Delrin. Use with any antenna coupler and a CB whip antenna. Comes with internal sainless steel threaded adaptors and hardware. Use with any GeoTool HF Mount or on user designed base .

Works great with a stainless steel CB whip (Under $20.00 at Radio Shack)


DIMENSIONS

LENGTH
Plastic Insulator  = 3.0"
With Hardware    = 4.5"
DIAMETER             = 1.5"
